Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler

Name: Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner Peltier Air Cooler
Brand: Adcol
Price: 1 USD

China Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler wholesale

Brand Name : Adcol

Model Number : ATA100-12VDC

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 500Pcs per month

Delivery Time : 3 - 4 Weeks

Packaging Details : Solid Carton Packaging

Rating Maintained : NEMA12

Dimension : 203*155*213mm

Capacity : 100W

Hot Side Fans Current : 0.52amps

Cold Side Fans Current : 0.45amps

Weight : Est. 2.8kg

Contact Now

Durable Thermoelectric Air Cooler Outdoor Cabinet Air Conditioner , Peltier Air Cooler

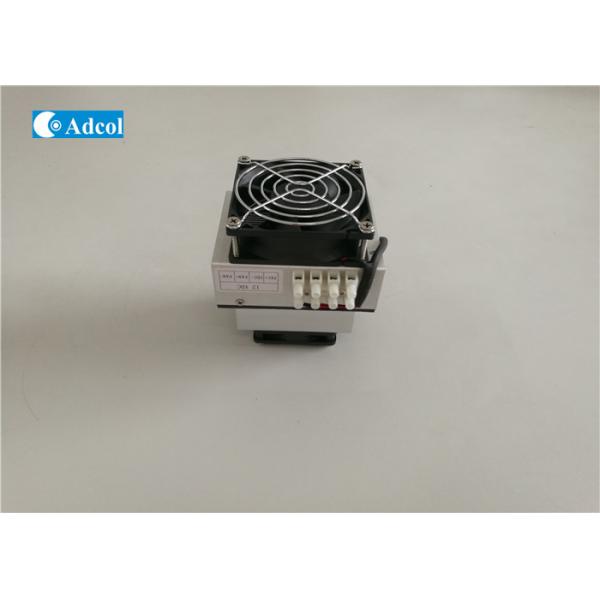

ATA100-12VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient temperatures while removing up to 280 BTU/Hr (@ 77˚F ambient). Use 24VDC configuration, it could generate 80W power, if use 12VDC configuration, it could generate 100W power. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic (Power Connector)
Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler

Position	Description
1	TEC +
2	TEC -
3	FAN +
4	FAN -

1 – Specification:

Model:	ATA100-12VDC
Description	Air to Air cooling System
Capacity- Qmax	100 Watts
Input Voltage	12 VDC
Working. Ambient Temp.	0~60˚C
TEM Current (Running)	15.0 amps
TEM Current (Start)	13.8amps
Hot Side Fans Current	0.52 amps
Cold Side Fans Current	0.45 amps
Weight	Est. 2.8 kg
Rating Maintained	NEMA 12
Overall Dimensions	203mm x 155mm x 213mm

2 - Installation Method and Cutout Dimension (in mm)

Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler

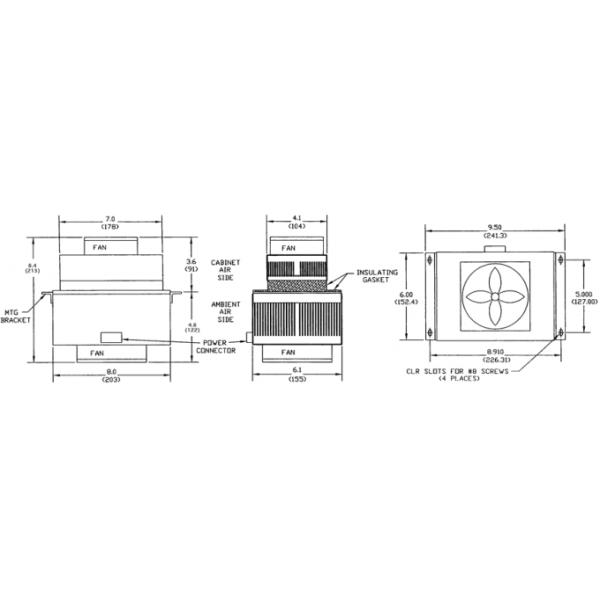

3 - Dimensional Drawing (in mm)

Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler

4 – Performance Curve

Durable Thermoelectric Air Conditioner Outdoor Cabinet Air Conditioner , Peltier Air Cooler
